    Thermal Insulation Waterproof PU EPS Rock Wool Sandwich Panel Production Line

    Ask Lasest Price
    Brand Name : Hangzhou Maxwell
    Model Number : PU Roof
    Certification : CE,ISO9001
    Price : USD75000-USD120000
    Payment Terms : T/T, , L/C
    Supply Ability : 10 sets per month
    Delivery Time : 60 work days
    • Product Details
    • Company Profile

    Thermal Insulation Waterproof PU EPS Rock Wool Sandwich Panel Production Line

    Z LOCK EPS AND ROCK WOOL SANDWICH PANEL PRODUCTION LINE


    Overview:


    Color steel sandwich panel is an insulation composite maintenance board made of color-coated steel plates or other panels and bottom plates and insulation core materials through adhesives. It is mainly used in anti-corrosion, pressure vessel manufacturing, power construction, petrochemical, and pharmaceutical industries. The sandwich panel is light in weight, about 10kg~14kg/square meter, equivalent to 1/30 of the brick wall; Thermal insulation, sealing performance good; convenient construction, flexible and fast installation, construction period can be shortened by more than 40%; Bright, beautiful appearance, no need for surface decoration; high strength, can be used as maintenance structure, load-bearing structure, bending and compression resistance, beams and columns are not required for general houses.


    Color steel sandwich panel has thermal insulation, waterproof and flame-retardant, lightweight shock resistance, sound insulation and noise reduction, and corrosion resistance. It can be applied in many fields, regardless of region. It is a very popular panel in recent years. Its advantages are well received by everyone.

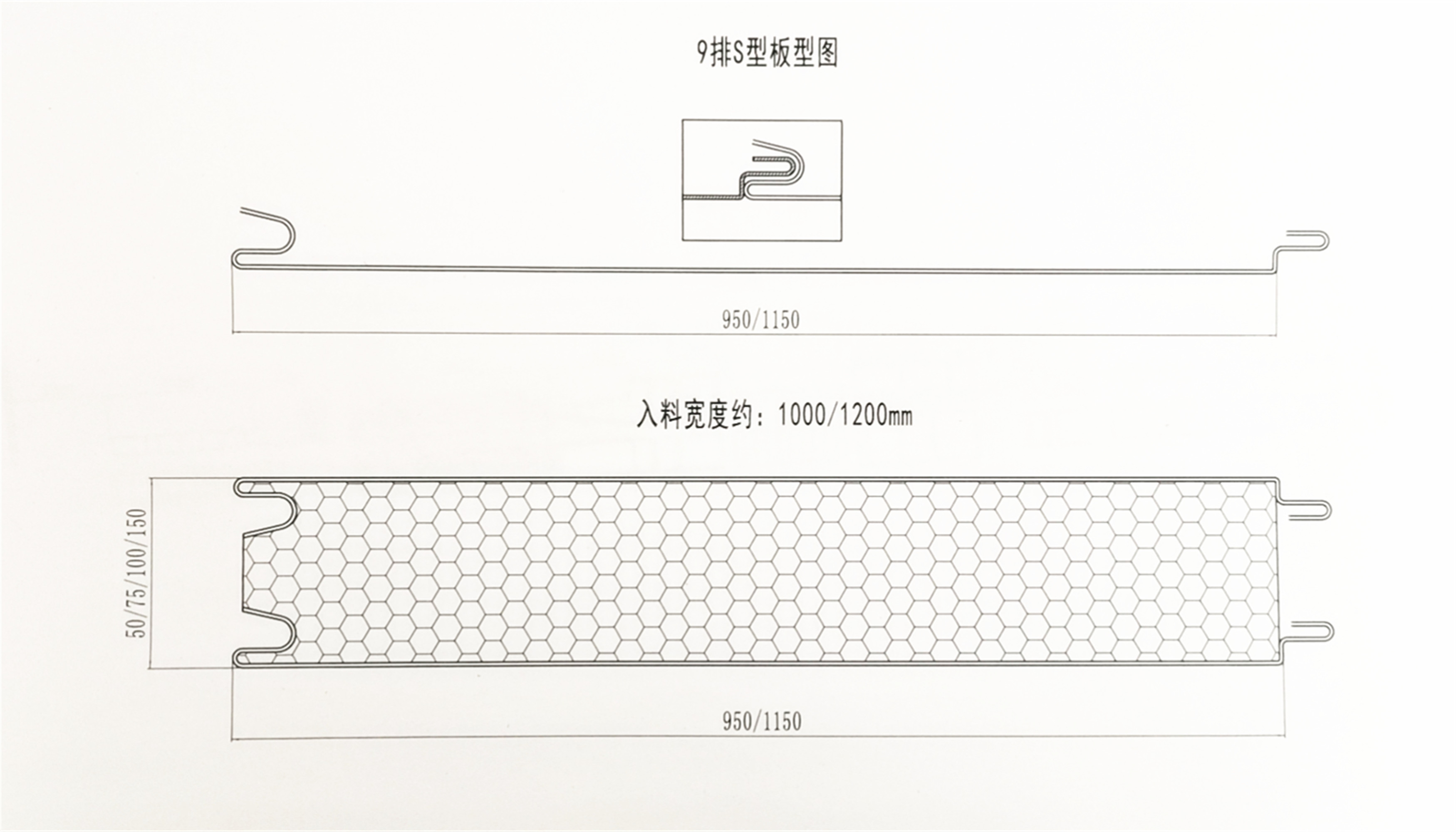

    Profile Drawing

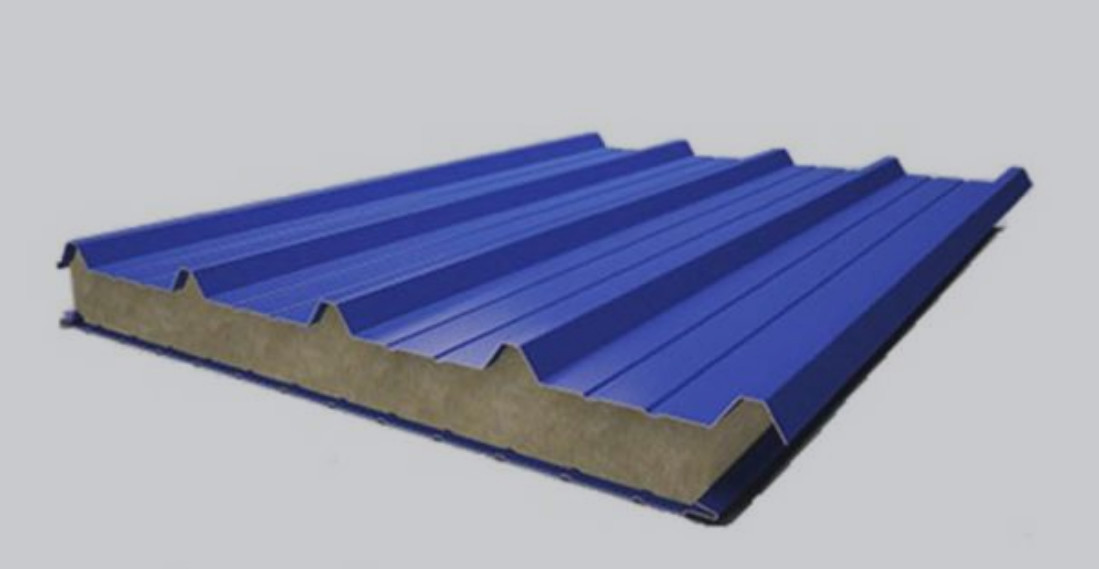

    Z Lock Roof Panel

    Thermal Insulation Waterproof PU EPS Rock Wool Sandwich Panel Production Line

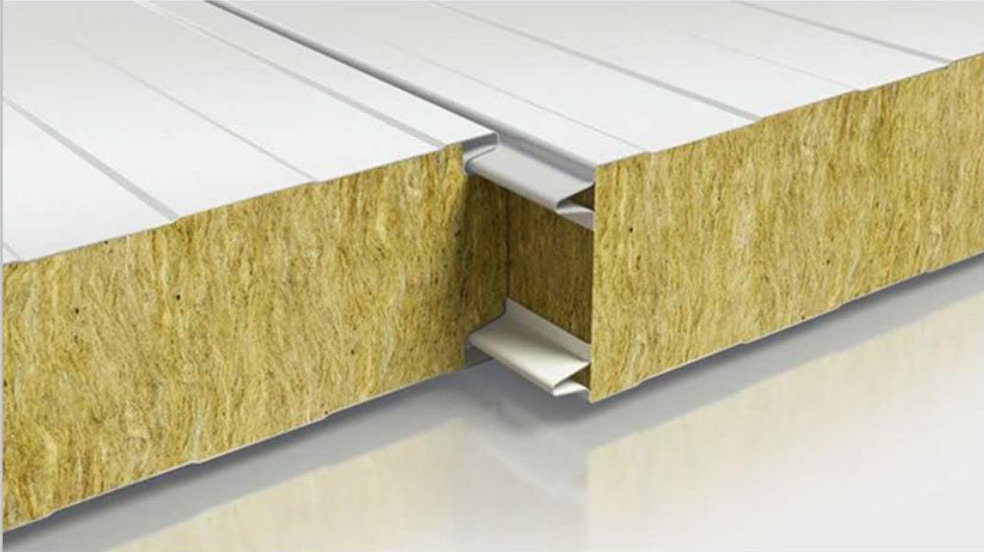

    Z Lock Wall Panel

    Thermal Insulation Waterproof PU EPS Rock Wool Sandwich Panel Production Line

    Thermal Insulation Waterproof PU EPS Rock Wool Sandwich Panel Production LineThermal Insulation Waterproof PU EPS Rock Wool Sandwich Panel Production Line


    Machine Components


    No.NameComponentsQuantityRemark
    1

    Roof panel roll-forming machine

    (can choose or not)

    Manual Decoiler1 setCapacity 5 tons

    Steel cutting device


    1 setElectric

    Double-layer roll-forming machine


    1 setcan choose or not
    2Feeding machineSteel uncoiler2 setsCapacity 5 tons
    3Z lock wall panel machineCore material conveying device2 setsConvey the core material for the sandwich panel machine
    Rectifying device2 setsA device for calibrating the position of the feeding steel plate
    Ribs forming set2 setsUpper/Lower each 1 set
    Electrical cutting sheet set2 setsUpper/Lower each 1 set
    Z lock wall panel forming device2 setsUpper/Lower each 1 set
    4The main sandwich panel part

    Glue pump


    1 set4 glue pumps, 2 motors, 2 inverters
    Pneumatic glue device2 sets

    Upper glue 1 set of glue spray 1 set

    Lower glue homogenizer 1 set

    Milling cutter device1 set

    Cut the core material to the desired shape according to the plate shape.


    Sandwich main part and transmission


    1 set

    Infrared heating device


    6 sets

    automatic length recording device


    1 setAutomatically measure the product length device

    electric operating table


    1 setControl the whole composite device running
    Rock wool trips convey tableManually feed the rock wool device
    5

    Main machine line PLC computer control


    1 set
    6Cutting device1 setDouble cutting, the roof, and wall panels are cut separately, it is with sealing, more environmentally
    7

    stacker crane hacking machine


    1 set12 meters

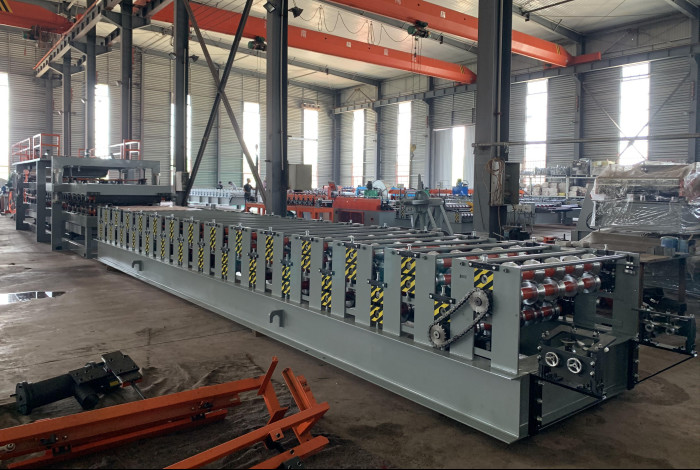

    Roof panel roll forming machine

    Thermal Insulation Waterproof PU EPS Rock Wool Sandwich Panel Production Line

    Thermal Insulation Waterproof PU EPS Rock Wool Sandwich Panel Production Line

    Feeding Machine

    Thermal Insulation Waterproof PU EPS Rock Wool Sandwich Panel Production Line


    Wall Panel Roll Forming Machine


    Thermal Insulation Waterproof PU EPS Rock Wool Sandwich Panel Production Line


    Up Layer/Down Layer Roll Forming Machine

    Thermal Insulation Waterproof PU EPS Rock Wool Sandwich Panel Production Line


    Main Sandwich Panel Machine

    Thermal Insulation Waterproof PU EPS Rock Wool Sandwich Panel Production Line


    Cutting Device Combination

    Thermal Insulation Waterproof PU EPS Rock Wool Sandwich Panel Production Line


    Flow Chart

    Thermal Insulation Waterproof PU EPS Rock Wool Sandwich Panel Production Line

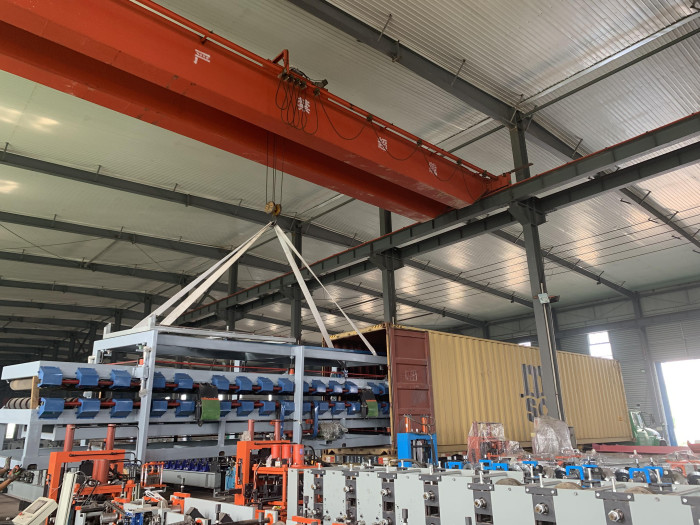

    Packaging and Shipping


    1. Anti-corrosion oil is sprayed during transportation to prevent oxidation of the machine

    2. Packaging isolation film to prevent machine oxidation during transportation

    3. Fixed on the container with wire to prevent damage to the machine during transportation

    Thermal Insulation Waterproof PU EPS Rock Wool Sandwich Panel Production Line

    After-sales Service


    1. Technical Support: Our experienced technical team is available to provide assistance and guidance on product installation, operation, and maintenance.

    2. Spare Parts Supply: We maintain a stock of genuine spare parts to quickly solve any equipment issues and minimize downtime.

    3. Training Programs: We offer training programs for your staff to ensure they are proficient in using and maintaining our equipment effectively.

    4. Warranty Coverage: The warranty is one year after the client receives the machine. All our products come with a warranty period, during which we provide prompt repair or replacement services for any defects covered under the warranty terms.

    5. Regular Maintenance: We recommend and offer scheduled maintenance services to keep your equipment in optimal condition and maximize its lifespan.

    6. Customer Feedback: We value your feedback and continuously strive to improve our products and services based on your input.
