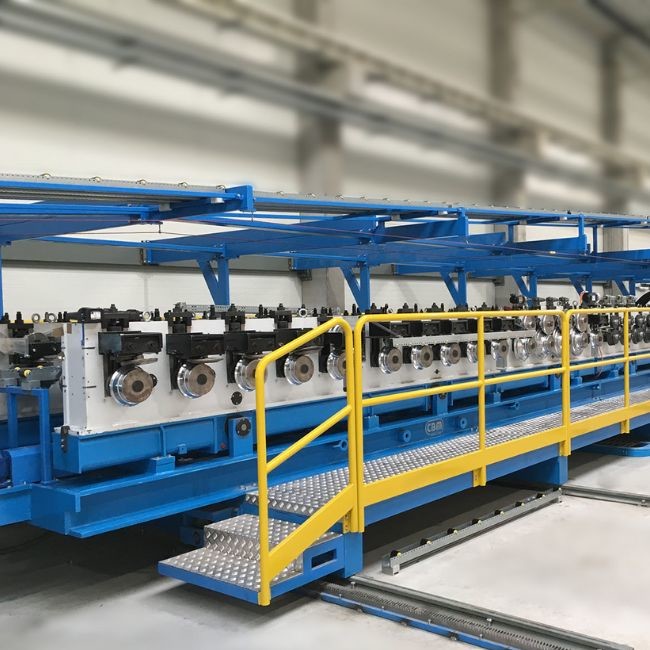

Product Description:
The PU Sandwich Board Making Machine is designed to be powered by a
380V/50Hz/3Phase power supply. The machine comes with a manual
uncoiler, which makes it easy to load and unload materials. The
machine has a dimension of 7300x1600x1200mm, making it compact and
easy to install in any factory.
The PU Foam Sandwich Board Manufacturing Plant has a working
efficiency of 12-15m/min, which means that it can produce a large
number of panels in a short amount of time. The machine can also be
customized to meet specific production requirements. The PU foam
density is 40±5 Kg/m³, or it can be adjusted based on the
customer's requirements.
The PU Sandwich Panel Production Line is designed to be easy to
operate. The machine is fully automated and requires minimal human
intervention. The machine can be controlled using a touchscreen
interface, which is easy to use and can be customized to meet the
operator's needs.
The PU Foam Sandwich Board Manufacturing Plant is an excellent
investment for any company that wants to produce high-quality
panels quickly and efficiently. The machine is designed to be
durable and requires minimal maintenance. The machine is also
energy-efficient, which helps reduce operating costs.
Features:
- Product Name: PU Sandwich Panel Production Line
- Thickness Of Material: 0.3-0.8mm
- Minimal Cutting Length: 1200mm
- Control Mode: PLC
- Working Efficiency: 12-15m/min
- Flexible Production: Intelligent Manufacturing
Also known as PU Foam Sandwich Board Production Line, PU Foam
Sandwich Board Manufacturing Plant, Polyurethane Sandwich Plate
Production Line
Technical Parameters:
| No | Item | Specification |
| 1 | Product name | PU Foam Sandwich Panel Production Line |
| 2 | Raw material | Material | PPGI GI |
| Feeding width | As Drawing |
| Thickness | 0.3-0.8mm |
| 3 | Decoiler | Operate | manual |
| Weight capacity | 5ton |
| 4 | Roll forming machine | Roller station | 18 |
| Diameter of shaft | 80mm |
| Roller material | NO.45 High Grade Steel |
| Frame | Steel plate welder |
| Cutting material | Cr 12 |
| Operation | Automatic cutting |
| Working speed | 15-20m/min |
| 5 | Power | Driving way | chain |
| Main motor | 7.5kw |
| Voltage | 380V 50hz |
| 6 | Control system | Electric box | PLC control system |
| PLC brand | Panasonic |
Applications:
The PU Sandwich Panel Production Line's automatic and manual spray
gun options make it perfect for use in the construction industry.
It can produce sandwich panels of different thicknesses, depending
on the required insulation levels. The machine's high work speed of
10-15m/min makes it ideal for producing large quantities of panels
in a short amount of time. The effective working length of 24m
(customized) ensures that you can produce long panels without any
interruptions.
The PU Foam Density is another factor that makes this product
suitable for various scenarios. The machine can produce panels with
a density of 40±5 Kg/m³ depending on the requirement. This feature
makes it an excellent choice for industries such as cold storage,
clean rooms, and other applications that require high levels of
insulation.
The Control Mode of the machine is PLC, making it easy to operate
and monitor. This feature is particularly useful in industries
where accuracy and precision are crucial. The machine's versatility
makes it ideal for use in various scenarios, including residential
and industrial construction, transportation, and other applications
where insulation is necessary.
In conclusion, the PU Sandwich Panel Production Line by Hangzhou
Maxwell is a reliable and efficient machine suitable for a wide
range of application occasions and scenarios. Its high-quality
features, such as the automatic and manual spray gun, high work
speed, PU foam density, control mode, and effective working length,
make it an excellent investment for any company looking to produce
high-quality sandwich panels.
Support and Services:
Our PU Sandwich Panel Production Line is designed and manufactured
to ensure optimal performance and efficiency for your production
needs. We offer comprehensive technical support to assist with
installation, operation, and maintenance of the production line.
Our team of experts is available to provide training to your staff
to ensure they have the necessary skills to operate the production
line effectively and safely. We also offer regular maintenance
services to ensure the production line operates at peak performance
and minimize downtime.
In the unlikely event of any technical issues, our technical
support team is available to provide prompt solutions and minimize
any disruptions to your production process.
Our commitment to customer satisfaction means that we are dedicated
to providing high-quality technical support and services to ensure
that your production process runs smoothly and efficiently.
Packing and Shipping:
Product Packaging:
The PU Sandwich Panel Production Line will be packed in sturdy
wooden crates to ensure safe transportation. All parts and
components will be properly secured and labeled for easy
identification and assembly.
Shipping:
The product will be shipped via sea or air freight, depending on
the customer's preference and location. We will arrange the
shipment and provide the tracking details to the customer once the
product leaves our facility. Delivery times may vary depending on
the destination and shipping method selected.
