Fully Automatic Adjustable Metal Cable Tray Making Roll Forming
Machine
Fully Automatic Cable Tray Making Roll Forming Machine
The cable tray roll forming machine is an advanced piece of
equipment designed to produce cable trays from a variety of
materials. Its fully automated control system employs a highly
integrated network, significantly enhancing the system's overall
efficiency and reliability. The machine features a servo motor that
ensures seamless, uninterrupted cutting, resulting in exceptionally
high efficiency and rapid production speeds. This state-of-the-art
design not only maximizes productivity but also guarantees
precision and consistency in the manufacturing process, making it
an indispensable asset for cable tray production.
Equipment consists
Auto-uncoiler --- Levelling machine --- Servo feeding machine ---
Punching press --- Hydraulic cutting --- Feeding frame --- Forming
machine --- Collection table

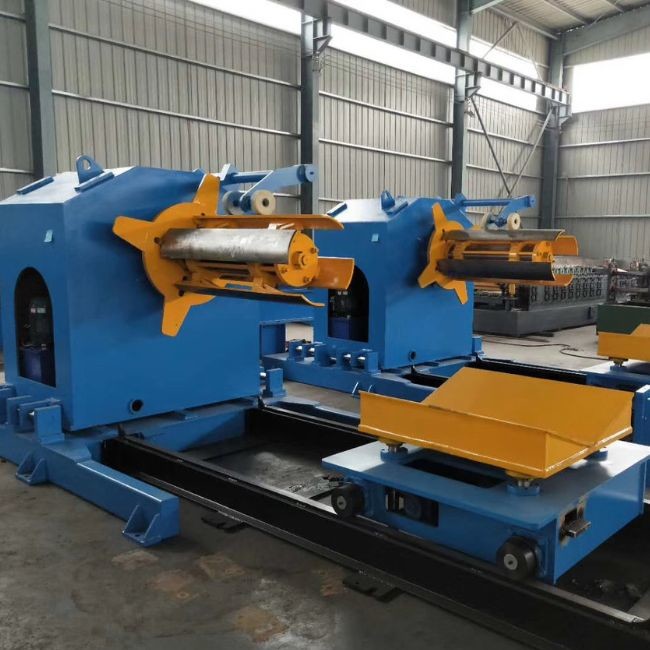

Hydraulic Decoiler
Width of material sheet: 200-950mm,
The thickness of the material sheet: 1.0~1.5 mm
Inner diameter: 508mm Range of expanding: ф480-520 mm
Maximum outer diameter: φ1300mm, loading: ≤5T
Type of expansion: hydraulic expansion.
Type of press coiler: air-powered press
Feeding speed: 0-10m/min, adjustable

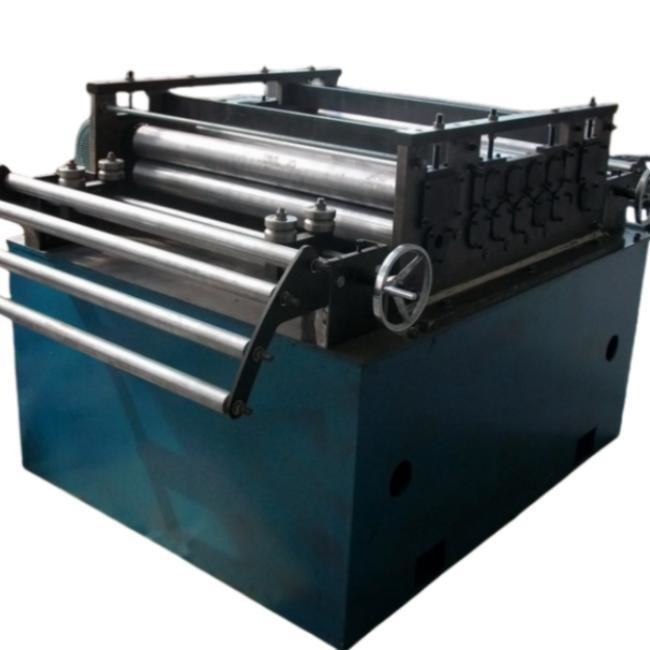

Levelling Machine
Working roller: nine rollers type leveling machine
Servo Feeding Machine
Function: Feeding material.
Feature: Uses the servo motor-driven.Multistage type feeding: May
input 10 groups of different feeding lengths, The liquid crystal
touching screen demonstrated is advantageous for the change, and
establishes various technical parameters. The auto-induction start
system and the punch press linkage (control punch press start).

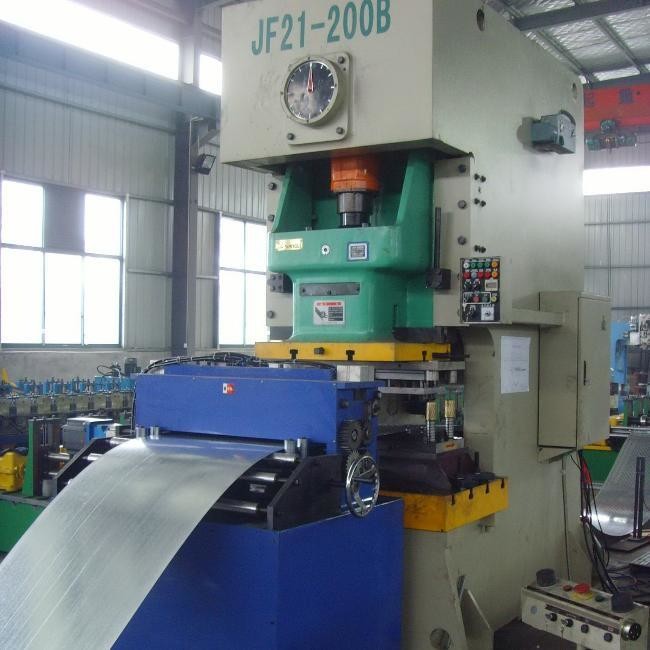

Punching press
Punching press: Uses the steel plate welding fuselage, the rigidity
is strong with a good appearance.Uses the combined type
air-operated friction clutch.

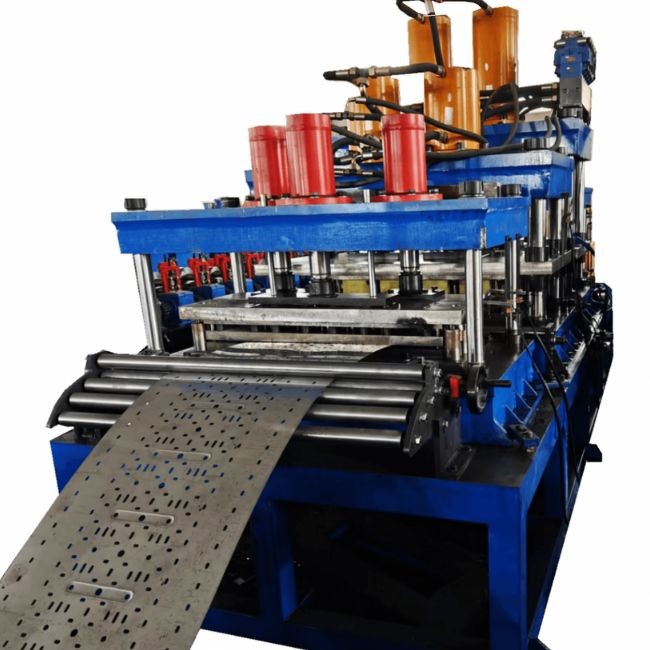

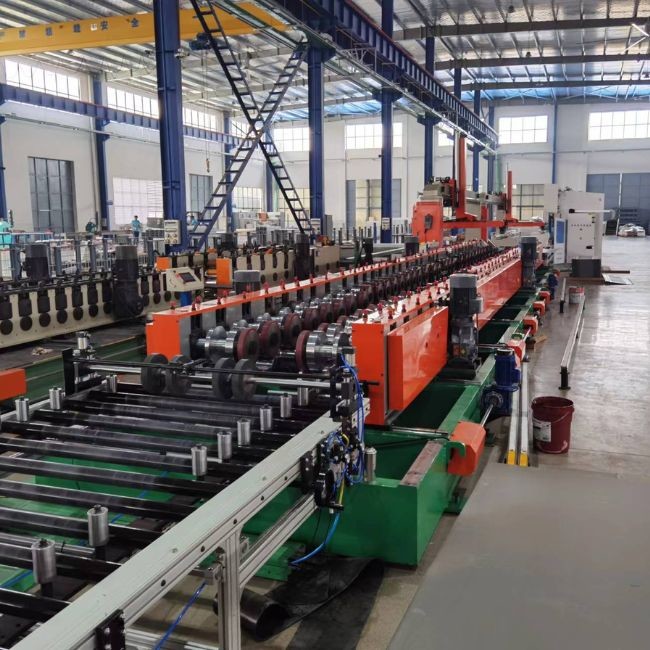

Main Roll Forming Machine
| Fully Automatic Cable Tray Roll Forming Machine |
| Formed Material | GI or aluminum or steel sheet |
| Forming stations | 22 stations |
| Main power | 22KW siemens motor |
| Diameter of shaft | 70mm |
| Max rolling speed | 6-10m/min(including the punching time) |
| Thickness | 1.0-1.5mm galvanized steel (Or as per customer's request) |
| Material width | 200mm~950mm(As the profile drawing) |
| Material of roller | CR12 with quenched treatment |
| Material of blade mold | Cr12, quenched 58-62 |
| way of cutting | hydraulic mold cutting |
| Length cutting tolerance | +/-1.0mm |
Type: double hanger gearing drive. Forming width is adjusted by
automatically forming the wall moving, it also can adjust the
height quickly.
Insert the sheet plate which is already perforated into the
machine, through 22 stations to roll as the cable tray. It consists
of the speed regulation alternating current machine, reducer,
high-precision linear rails, gearbox (left and right side), the
crosswise adjusting mechanism, and one complete set of rollers. One
set of rollers can complete all types of cable trays, type change
can through the adjustment of one side of the machine manually. The
main body and the gearbox use the welding structure and
de-stressing processing; the material of the gear is the 45 steel
hard tooth surface. The manufacturing technology of the main
forming machine is from Italy, it will guarantee high precision.
PLC Control System
Packaging and Shipping
1. Anti-corrosion oil is sprayed during transportation to prevent
oxidation of the machine
2. Packaging isolation film to prevent machine oxidation during
transportation
3. Fixed on the container with wire to prevent damage to the
machine during transportation
After-sales Service
1. Technical Support: Our experienced technical team is available
to provide assistance and guidance on product installation,
operation, and maintenance.
2. Spare Parts Supply: We maintain a stock of genuine spare parts
to quickly solve any equipment issues and minimize downtime.
3. Training Programs: We offer training programs for your staff to
ensure they are proficient in using and maintaining our equipment
effectively.
4. Warranty Coverage: The warranty is one year after the client
receives the machine. All our products come with a warranty period,
during which we provide prompt repair or replacement services for
any defects covered under the warranty terms.
5. Regular Maintenance: We recommend and offer scheduled
maintenance services to keep your equipment in optimal condition
and maximize its lifespan.
6. Customer Feedback: We value your feedback and continuously
strive to improve our products and services based on your input.
