    W Beam / Thire Beam Road Barrier Highway Guardrail Forming Machine 10m/Min-20m/min

    Ask Lasest Price
    Brand Name : Hangzhou Maxwell
    Model Number : Highway Guardrail-001
    Certification : CE,ISO9001
    Price : USD50,000-USD75,000
    Payment Terms : T/T, , L/C
    Supply Ability : 10 sets per month
    Delivery Time : 60 work days
    • Product Details
    • Company Profile

    W Beam / Thire Beam Road Barrier Highway Guardrail Forming Machine 10m/Min-20m/min

    W-beam Or Thire-beam Road Barrier Highway Express Guardrail Machine Highway Guardrail Roll Forming Machine


    W-beam Or Thire-beam Highway Guardrail Roll Forming Machine


    Design Concept:


    Roller Material: Utilize G2 or SKD11 materials to ensure long-lasting durability.

    Frame Construction: Employ molded frame designs for enhanced stability and strength.

    Punching Mechanism: Implement pre-punching processes with PLC control for precision.

    Base Frame: Constructed from solid steel for robustness and longevity.

    Shearing Options: Offer both pre-shearing and post-shearing capabilities as options.


    Profile Drawing

    W Beam / Thire Beam Road Barrier Highway Guardrail Forming Machine 10m/Min-20m/minW Beam / Thire Beam Road Barrier Highway Guardrail Forming Machine 10m/Min-20m/min

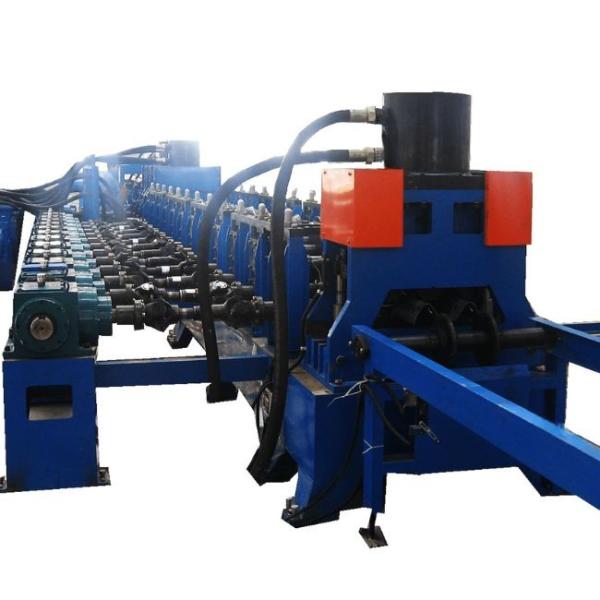

    Main Roll Forming Machine


    W-beam Or Thire-beam Highway Guardrail Roll Forming Machine
    Formed MaterialGalvanized steel sheet,, Q235
    Thickness2.0-3.5mm
    Roller station17stands and 2stands pinch roll and 7roll leveler
    Diameter of shaft110mm
    Material of RollerGCr15 bearing with quench treatment, hard chrome plated on the surface, HRC58-62
    Feeding WidthW-beam:480mm; Thrie-beam:748mm
    Drivegearbox transmission
    Cuttercr12mov material, no scratches, no deformation
    Motor Power2*30KW
    Hydraulic system power11KW
    Voltage380V 50Hz 3Phase(As your requirement)
    Forming Speed10-20m/min

    W Beam / Thire Beam Road Barrier Highway Guardrail Forming Machine 10m/Min-20m/min


    The production flow of equipment


    Hydraulic Decoil —Feeding (take the sheet to the first station)—Leveling ----Punching ---- hydraulic cut to length—— roll

    Roll forming----Cut to length---output table


    W Beam / Thire Beam Road Barrier Highway Guardrail Forming Machine 10m/Min-20m/min


    W Beam / Thire Beam Road Barrier Highway Guardrail Forming Machine 10m/Min-20m/min


    Feeding and flattening

    Flattener roller: upper is 3 rollers, down is 4 stands(total is 7 rollers)

    Flattener roller material: SAE 1045 thermal treatment hardness 48-52 HRC.


    Packaging and Shipping


    1. Anti-corrosion oil is sprayed during transportation to prevent oxidation of the machine

    2. Packaging isolation film to prevent machine oxidation during transportation

    3. Fixed on the container with wire to prevent damage to the machine during transportation

    W Beam / Thire Beam Road Barrier Highway Guardrail Forming Machine 10m/Min-20m/min


    After-sales Service


    1. Technical Support: Our experienced technical team is available to provide assistance and guidance on product installation, operation, and maintenance.

    2. Spare Parts Supply: We maintain a stock of genuine spare parts to quickly solve any equipment issues and minimize downtime.

    3. Training Programs: We offer training programs for your staff to ensure they are proficient in using and maintaining our equipment effectively.

    4. Warranty Coverage: The warranty is one year after the client receives the machine. All our products come with a warranty period, during which we provide prompt repair or replacement services for any defects covered under the warranty terms.

    5. Regular Maintenance: We recommend and offer scheduled maintenance services to keep your equipment in optimal condition and maximize its lifespan.

    6. Customer Feedback: We value your feedback and continuously strive to improve our products and services based on your input.
